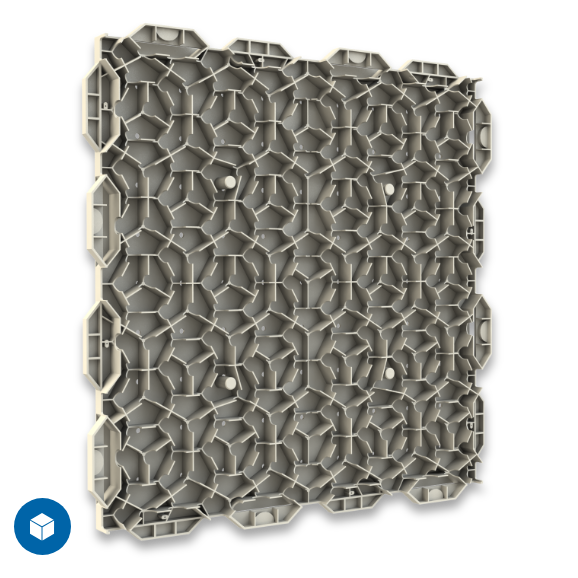

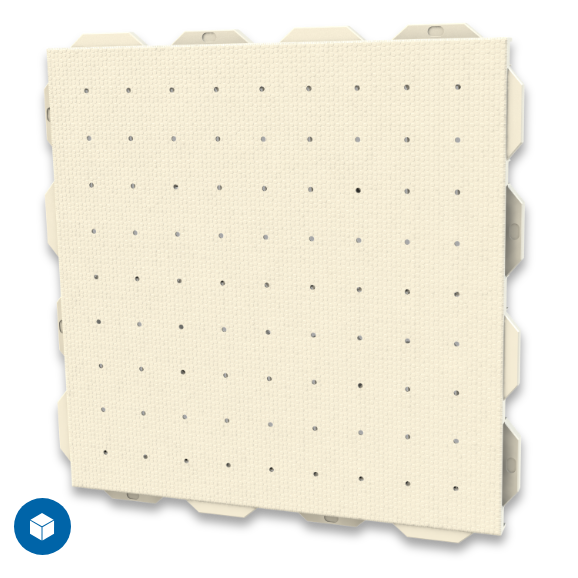

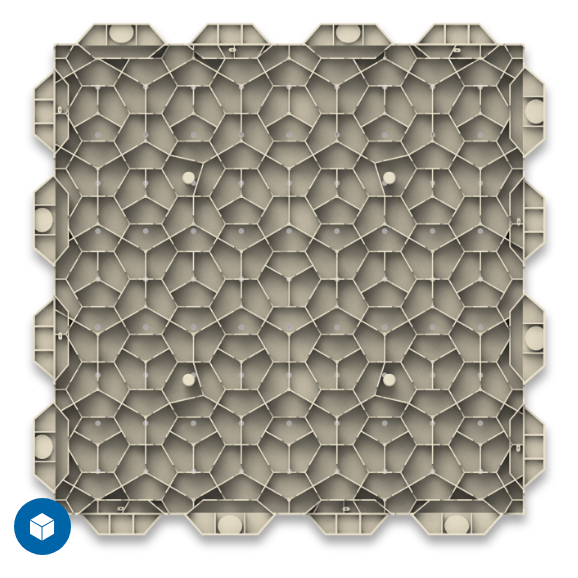

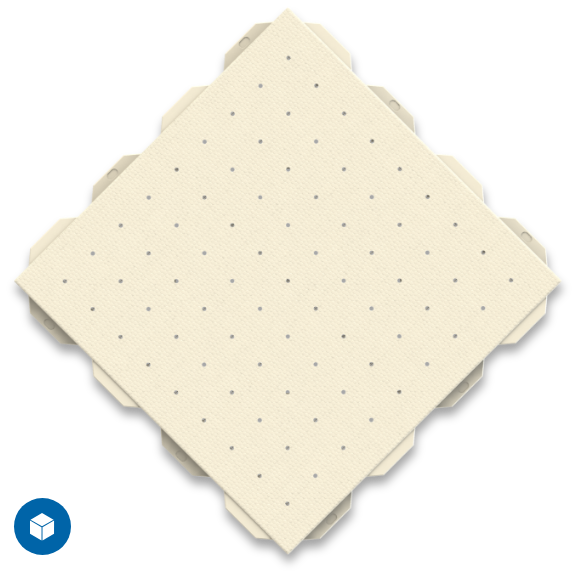

Court Panel
The Court panel system is the ideal alternative to building a permanent concrete sport or game court in one's yard or facility. It's cheaper, cleaner and easier to install and won't crack or split like concrete. Plus, it drains well and is ideal for addressing impervious surface regulations.
Specifications
Panel Dimensions (Uninstalled)
- 30” x 30” x 1.25”
- Metric: 762mm x 762mm x 31.75 mm
Square Footage Area Once Installed
- 28" x 28" x 1.25" or 5.44 square feet
- Metric: 711.2mm x 711.2mm x 31.75mm or 0.505 square meters
Average Panel Weight
- 10.2 lbs or 1.86 lbs square foot
- 4.63 kgs or 0.84 kgs per square meter
Colors: Putty, Charcoal Gray, Willow Green
PSI: Exceeds 300 lbs. per square inch
Vertical Drainage: 424.5" per hour
Horizontal Drainage: 12.1 gallons per minute depending upon gradient
Product Videos
Court Panel Product Overview
Ultra Base interlocking Court Panel easily snaps together making for a quick and fast installation. Press the play button to learn about features and benefits of Court Panel.
Ball Bounce Demo on Court Panel
See how different balls bounce on an Ultra Base Court. Ultra Base delivers consistent performance for pickleball, basketball, tennis, futsal, Dek hockey and more.
Common Applications

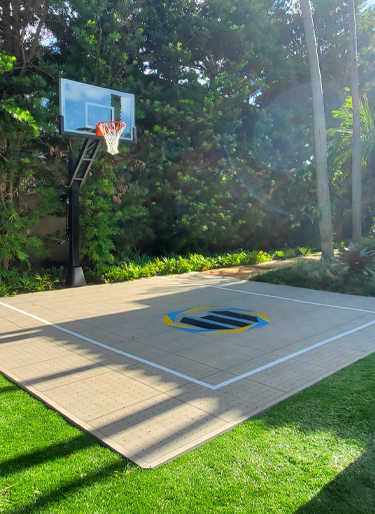

Courts & Rinks

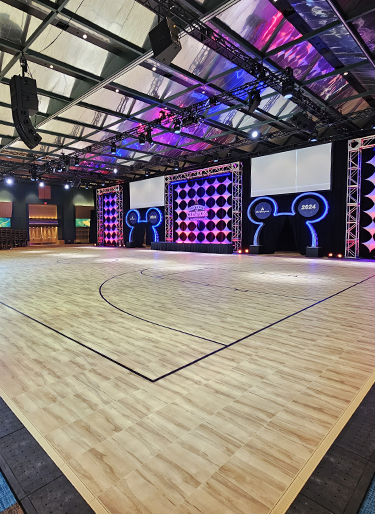

Portable & Event Flooring

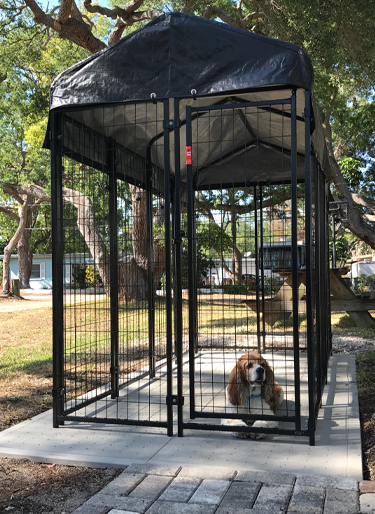

Concrete Pad Alternative
A Complete, Finished Surface
The Court Panel system includes interlocking corner and edge pieces as well as an ADA accessible ramp allowing you to create a functional and attractive base.
Finished Edge Trim
Interlocks with primary panels to finish off the look and allow water to run off.
Finished Corner Piece
Interlocks with Finished Edge Trim for a finished outside corner look.
ADA-Compliant Ramp
Interlocks with primary panels and supports movement of equipment, wheelchairs, etc.
Color Options for Court Panel

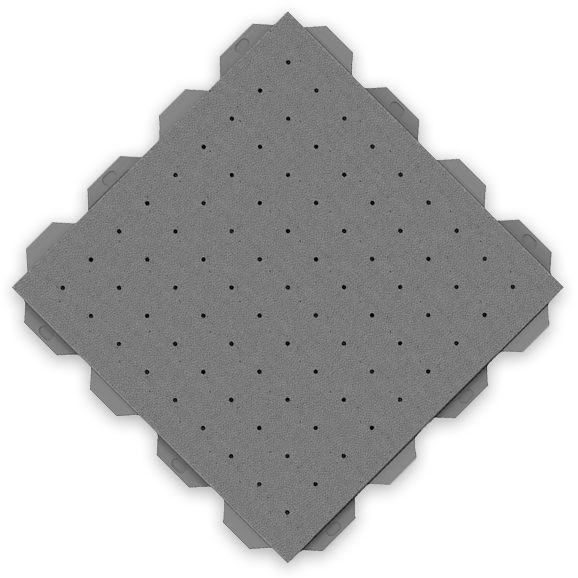

Charcoal Panel

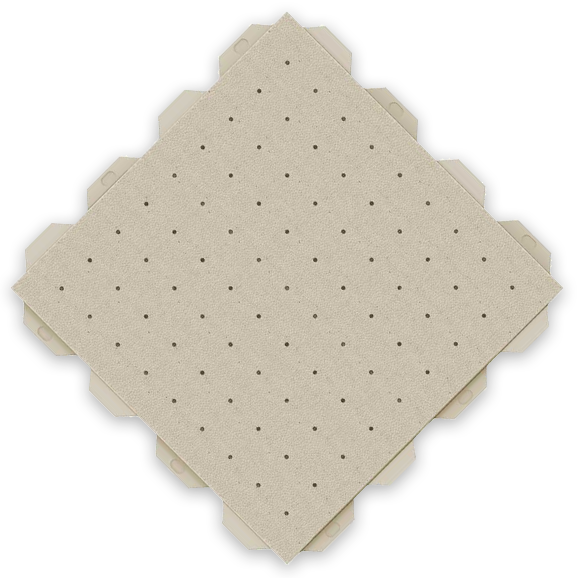

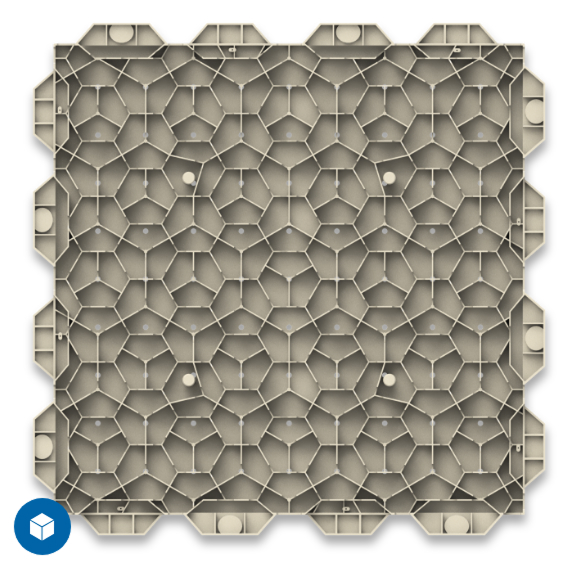

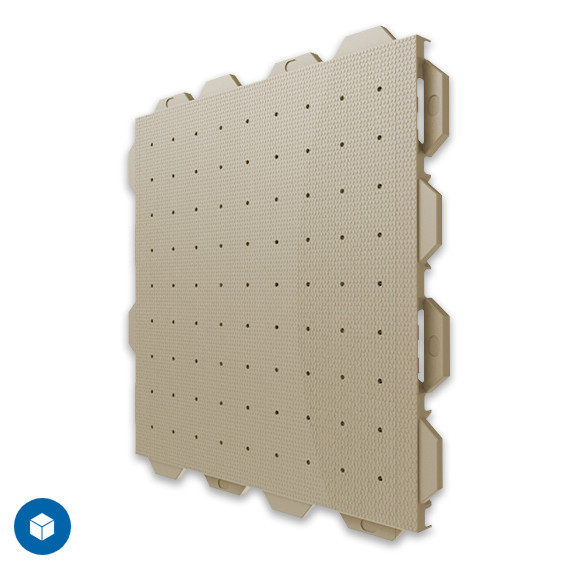

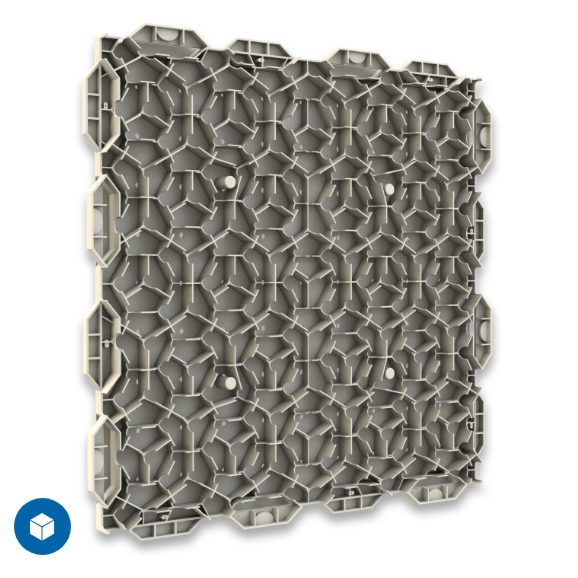

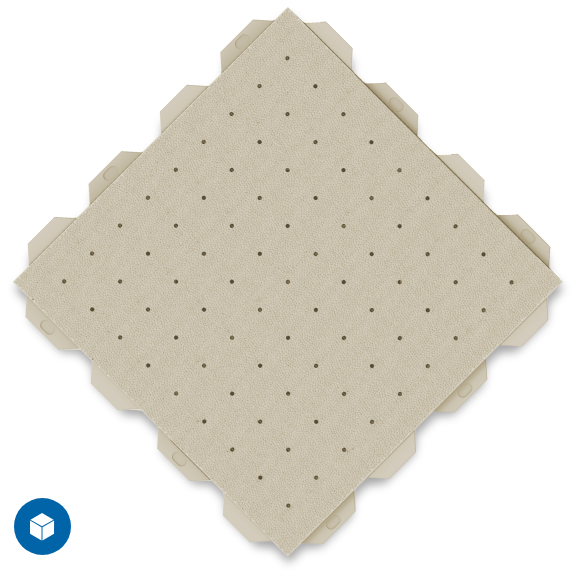

Putty Panel

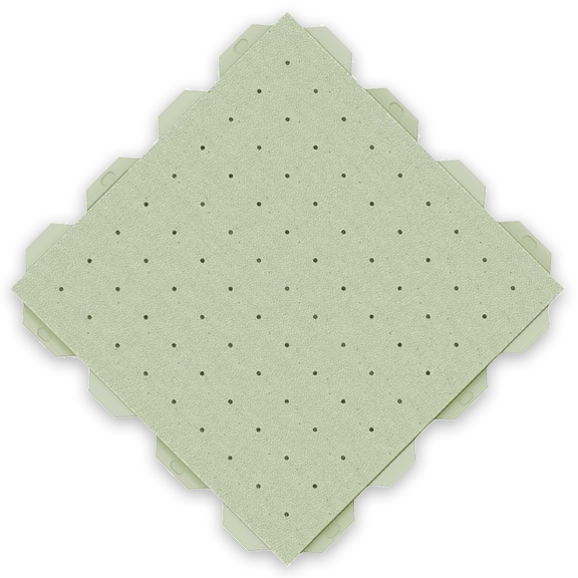

Willow Green Panel
Is Champion Panel Right for me?
Whatever type of base you need, Ultra Base has a system that will make it easier, cleaner and more cost effective to install.
Featured Project

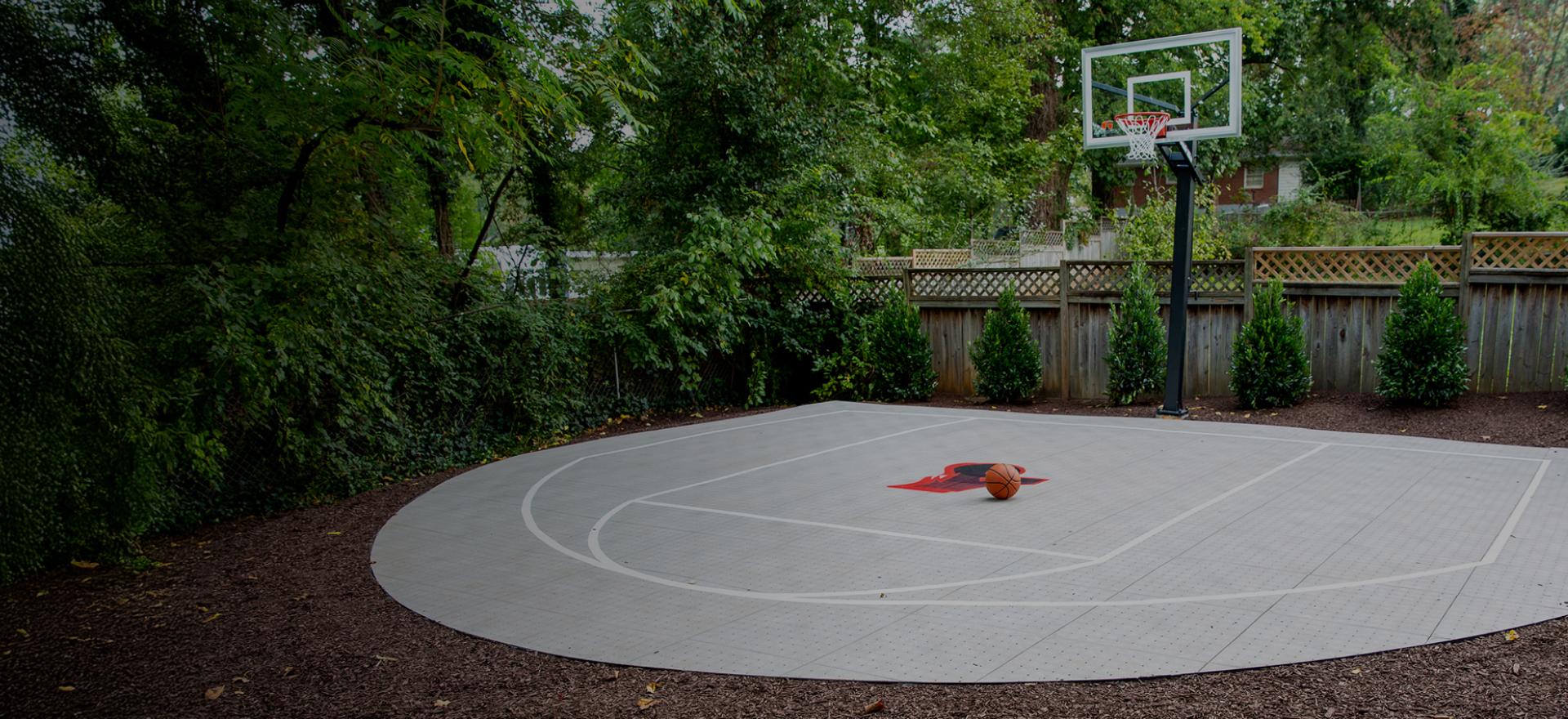

Ultra Base Court Featured on Netflix's Instant Dream Home
The Netflix series Instant Dream Home transformed an ordinary backyard into a family retreat in just 12 hours, featuring Ultra Base's innovative "Court without Concrete." The modular court system delivered a professional-quality basketball court that installs quickly, complies with surfacing regulations, and offers a cost-effective, low-maintenance alternative to concrete.
Get Started with Ultra Base Today
Talk to an Ultra Base team member today to discuss your project, application, and pricing options. Our experienced team will ensure you're choosing the right Ultra Base product for your application.
